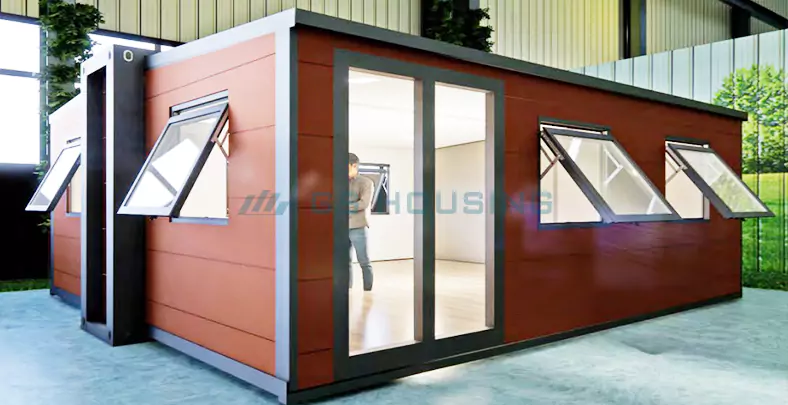

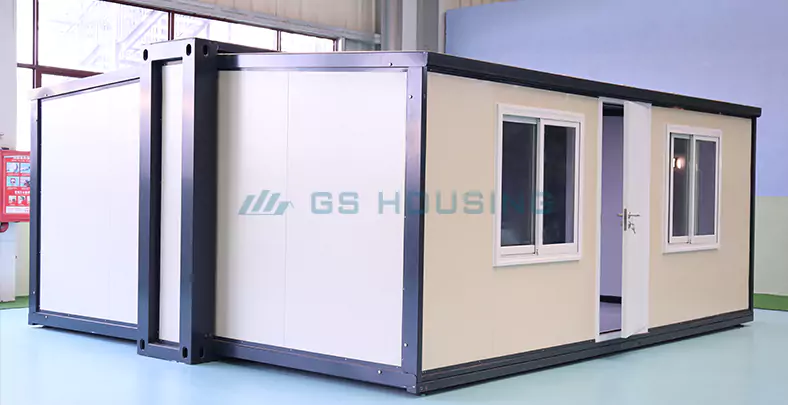

700-foot expandable small biplane house
  • Length: 9000mm
  • Width: 6200mm
  • Height: 2480mm
  • The double-wing expansion container house is an innovative integrated housing product that combines modular design, intelligent systems and environmental protection technology. It is suitable for a variety of scenarios such as homes, offices, and temporary residences.
  • Product: expandable container house, butterfly modular house, pop-up container house, double wing expansion house
  • Certifications： ISO / CE / ASTM / SGS
  • SASO / GOST-R / UL / BUREAU VERITAS
fs-02 fs-04 fs-05 righticon3
Chat Now Message

GS Housing Expandable container houses is a movable structure that can be quickly assembled and easily disassembled, suitable for various application scenarios such as house extensions, temporary living, travel vacations, and disaster relief. It is made of a fully galvanized frame and eco-friendly composite materials, featuring characteristics like lightweight, durability, environmental friendliness, and recyclability. The emergence of the double-wing expandable room provides people with flexible living and activity spaces in a short period of time.

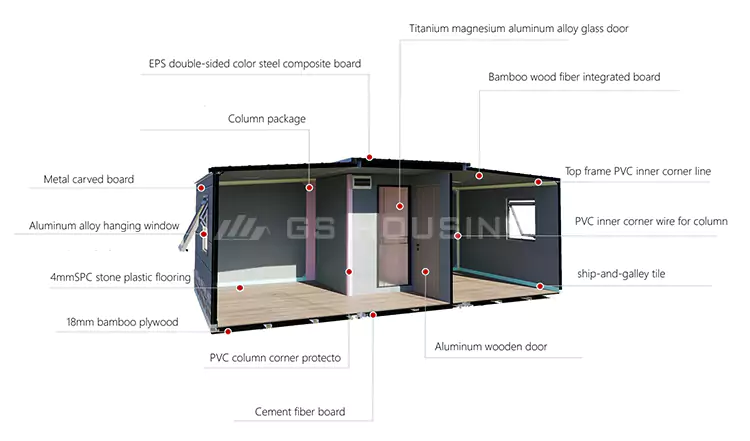

Product Structure：

Expandable container houses uses a high-strength galvanized steel frame as its supporting structure, ensuring stability and safety of the overall construction. The exterior is covered with eco-friendly composite panels, which are lightweight while providing excellent thermal insulation, heat resistance, and soundproofing. Quick unfolding and folding allow for easy space expansion and repeated use.

● Prefabricated components, modular assembly

● Galvanized frame – lightweight yet durable

● Highly flexible spatial configurations

● Eco-friendly and recyclable

●  Thermal insulation & soundproofing

● Multi-scenario applicability

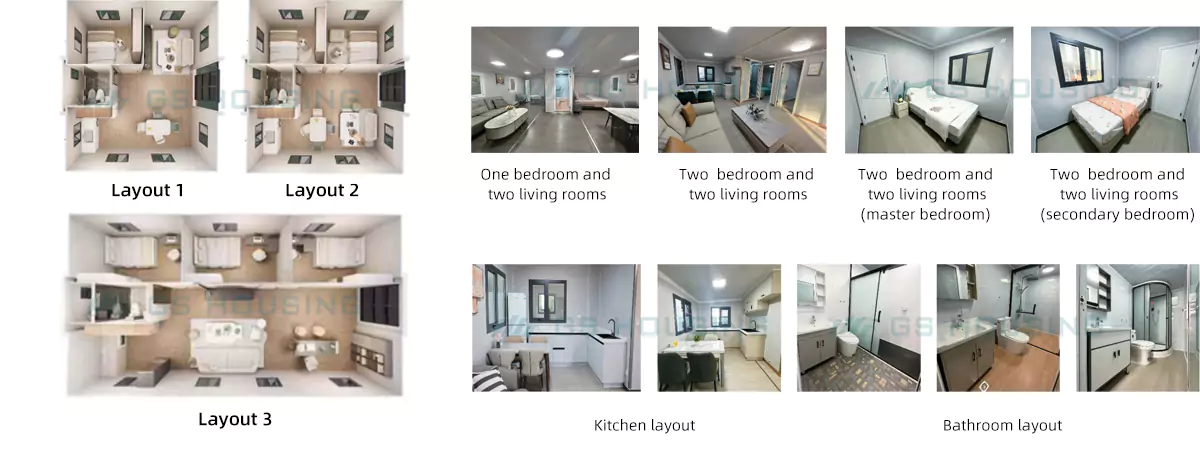

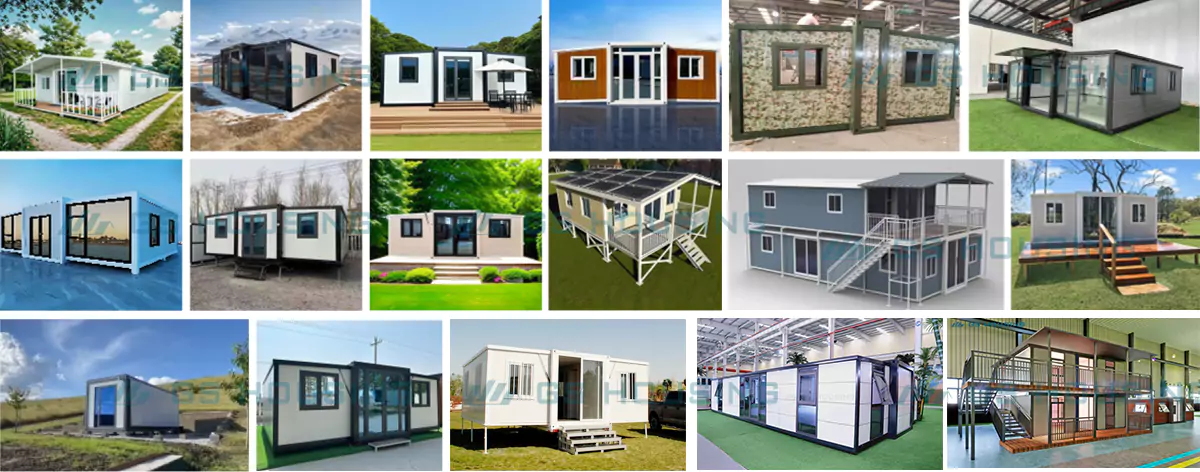

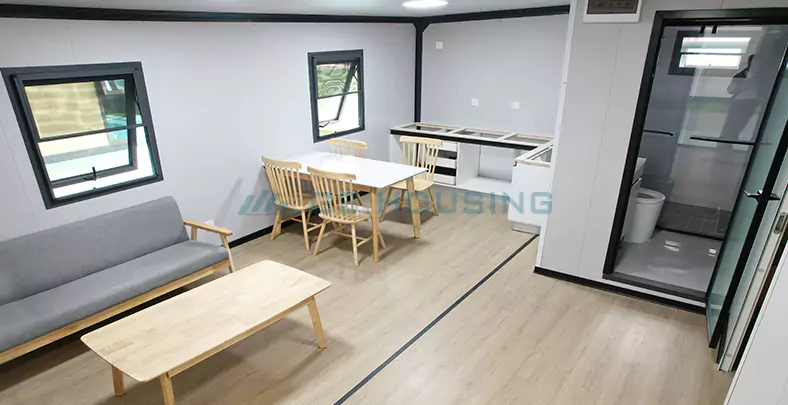

Product Exterior、 Layout & Interior







Product Advantages





Specifications

NO. NAME  SPECIFICATION
1

 Main frame
(fully galvanized)		 Top side beam 80*100*3.0mm Square tube
Top  beam 140*140*2.5mm Square tube
Bottom  side beam 140*100*2.5mm Square tube
Bottom   beam 140*80*3.0mm Square tube
6mm Galvanized hanging head Galvanized hanging head 210*150*160(mm)
Steel column 210*150*2.5mm Square tube
2 Side frame
(fully galvanized)		 Top frame 40*80*1.5mm P shaped tube
40*80*1.5mm  shaped tube
Bottom farm 60*80*2.0mm  shaped tube
Bottom hinge 130 mm Galvanized hinge
3 Wallboard Side walls\ front and rear\Inner partition board 1150 Type – 50mm thick double-sided 0.35mm EPS color steel sandwich panel
4 Ground  Center floor 18mm thick cement fiberboard + 1.6mm PVC flooring
Floor on both sides 18mm thick bamboo plywood + 1.6mm PVC flooring
5 Door and Windows Plastic steel sliding window 800*900mm 4mm+9A+4mm Double glazing
Steel single door  1360*2035mm
Available in various colors and styles, customizable! Can be designed as a one-bedroom with two living rooms or a two-bedroom with two living rooms



Installation Steps

Why Choose GS Housing



Authorative Certification





After-sales Service
1    Do you provide on-site installation service?
   We provide very detailed installation instruction drawings and videos for every project.For large projects, we will have  both installation workers and supervisors on site.The  fee for the on-site service should be negotiated with clients.
2    What’s your delivery time?
    Normally, delivery time is 7-10 days after deposit received. For large order, the delivery time should be negotiated.
3     How to control the quality of your product?
    1. quality of the design: think about possible problems in advance and provide a high-quality design solution.
    2. quality of the raw material: choose the qualified raw material
    3. quality of the production: precise manufacturing technique, experienced workers, strict qualit inspection.
4     How to deal with quality problems?
    Warranty is 2 years. Within the warranty period, CGCH will responsible for all quality problems caused by our production.
5     If there is a clear service life of your products? If have,how long?
    Under conventional climate and environment, the service life of container house steel frame is 20  years
6    What designs do you have in different climates (How can the products adopt to different climates)?
    Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall,or use good insulation material, improve anti-pressure ability of the structure. High corrosion region: use corrosion resistant material, or paint anti-corrosive coating.
