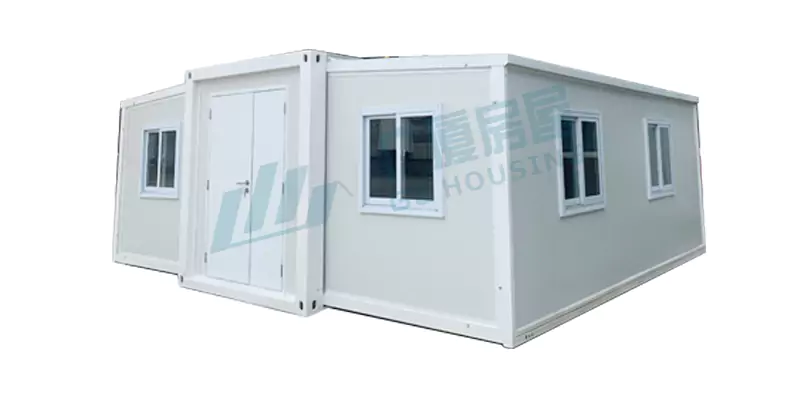

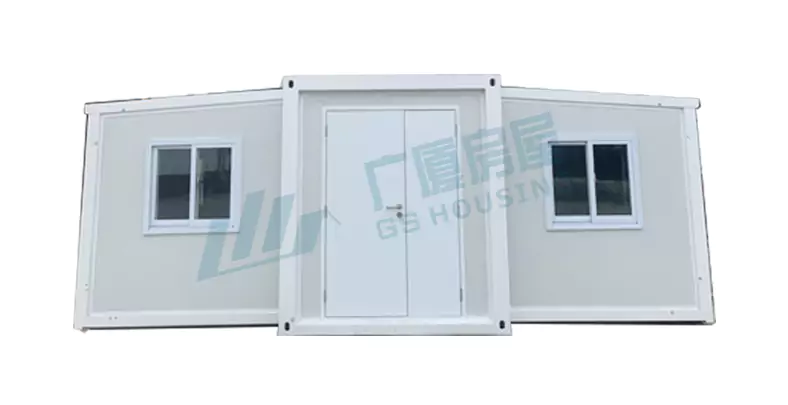

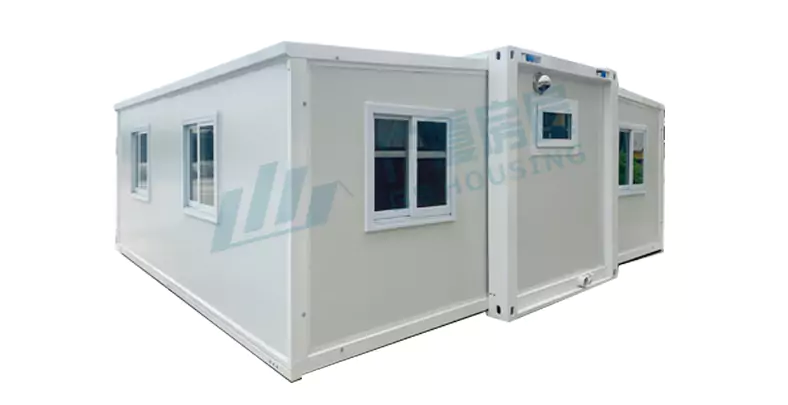

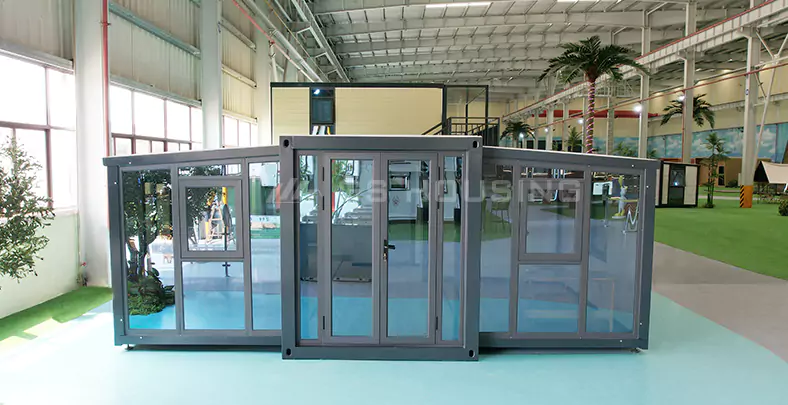

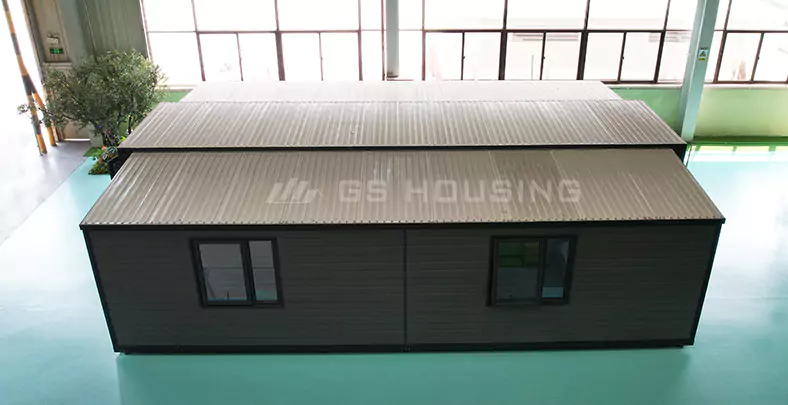

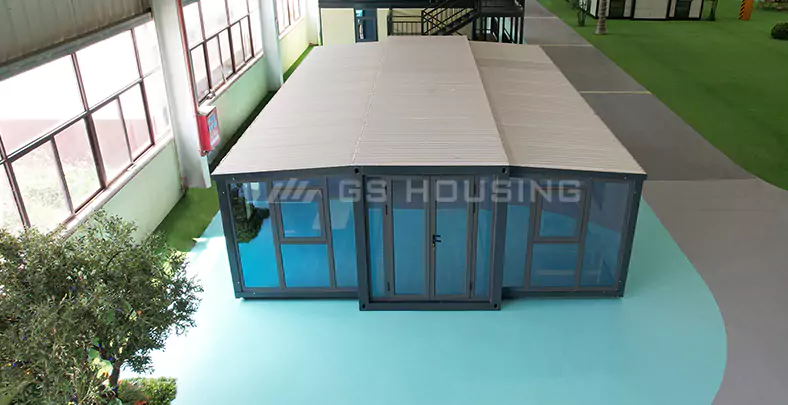

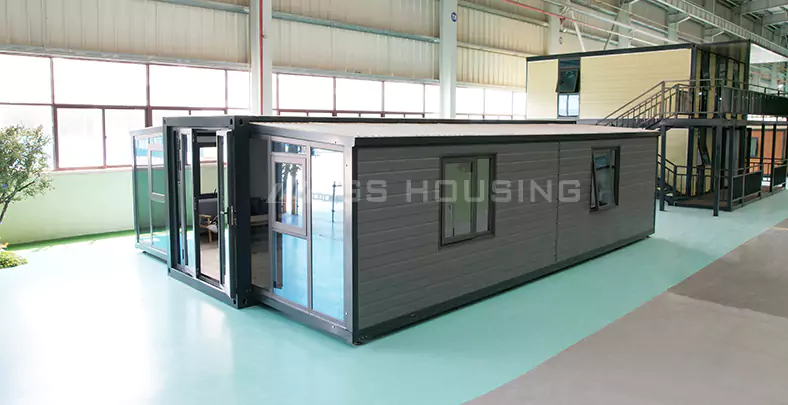

Expandable container houses-30 Feet
  • Length: 9000mm
  • Width: 6200mm
  • Height: 2480mm
  • Area: 56.7㎡
  • Type: Three-Bedroom Suite
  • Occupancy: 3-6 people
  • Certifications: ISO / CE / ASTM / SGS
  • SASO / GOST-R / UL / BUREAU VERITAS

GS Housing Expandable container houses is a movable structure that can be quickly assembled and easily disassembled, suitable for various application scenarios such as house extensions, temporary living, travel vacations, and disaster relief. It is made of a fully galvanized frame and eco-friendly composite materials, featuring characteristics like lightweight, durability, environmental friendliness, and recyclability. The emergence of the double-wing expandable room provides people with flexible living and activity spaces in a short period of time.

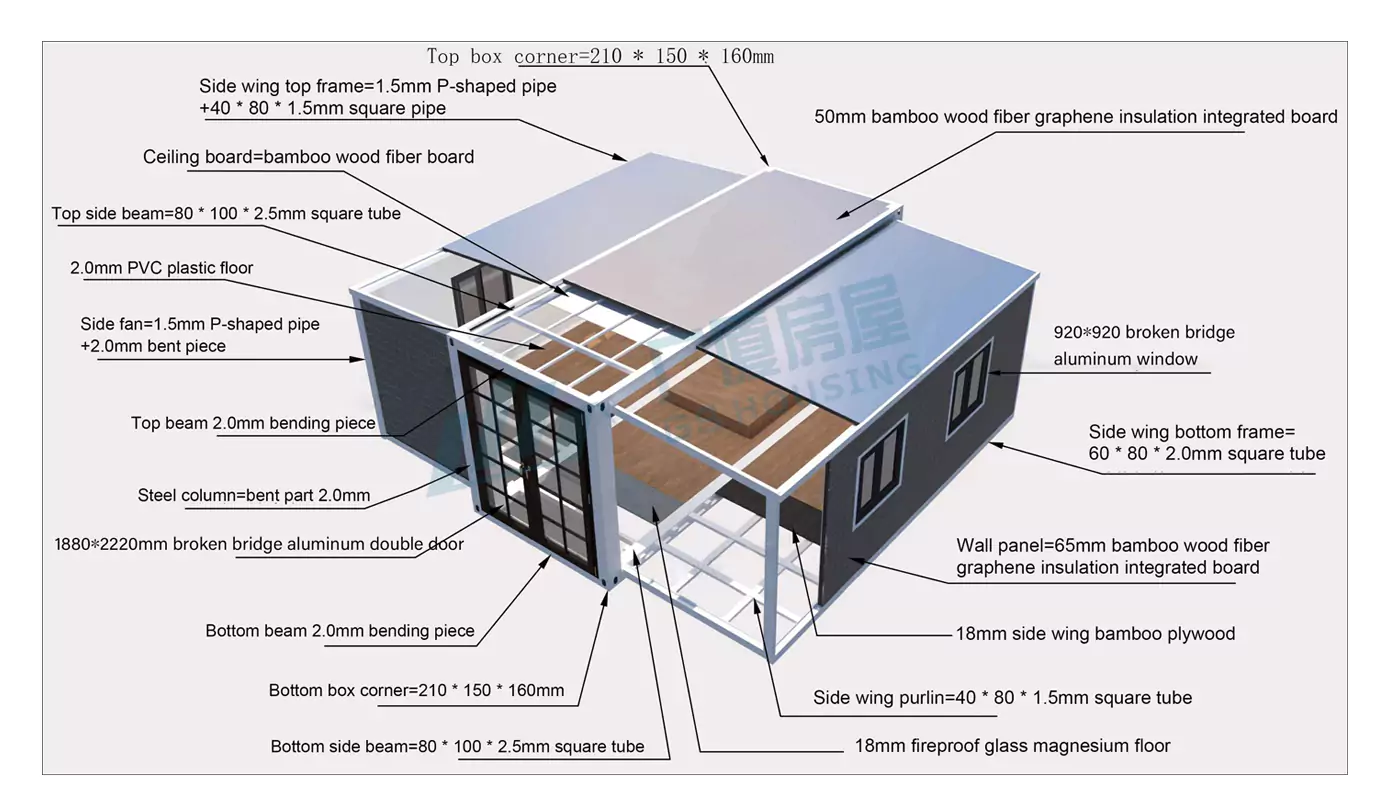

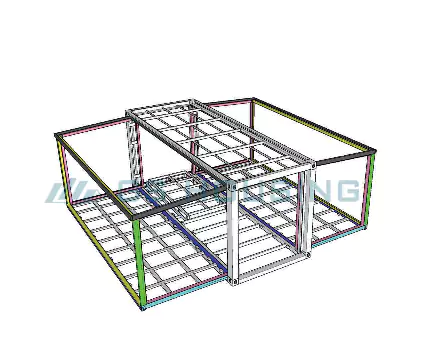

Product Structure:

Expandable container houses uses a high-strength galvanized steel frame as its supporting structure, ensuring stability and safety of the overall construction. The exterior is covered with eco-friendly composite panels, which are lightweight while providing excellent thermal insulation, heat resistance, and soundproofing. Quick unfolding and folding allow for easy space expansion and repeated use.

● Prefabricated components, modular assembly

● Galvanized frame – lightweight yet durable

● Highly flexible spatial configurations

● Eco-friendly and recyclable

●  Thermal insulation & soundproofing

● Multi-scenario applicability

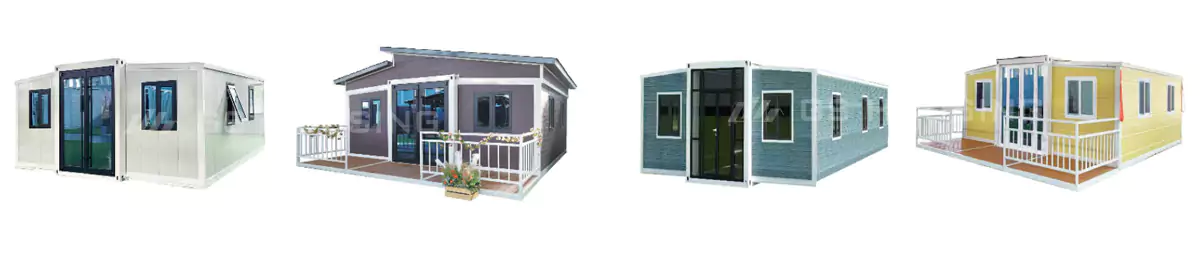

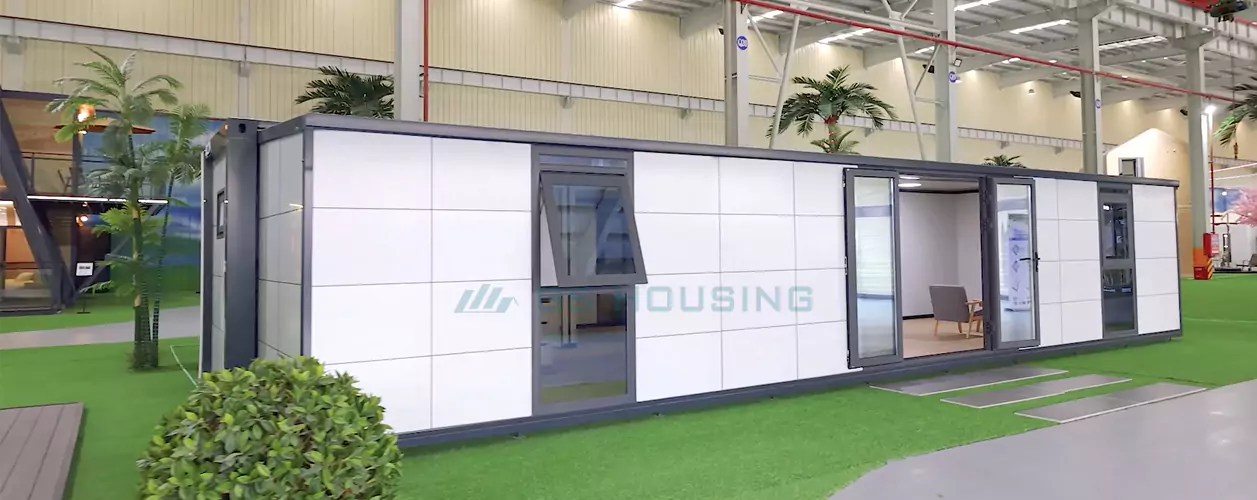

Product Exterior、 Layout & Interior

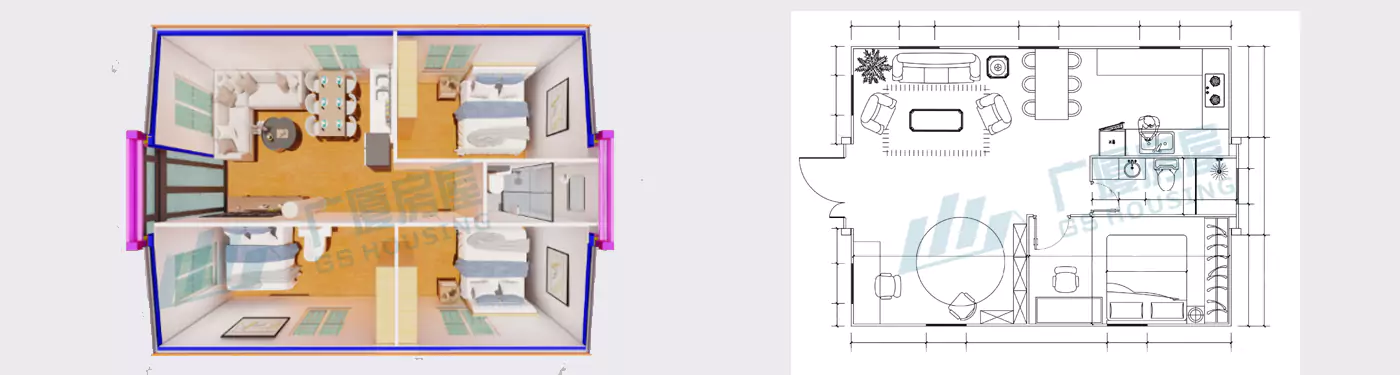

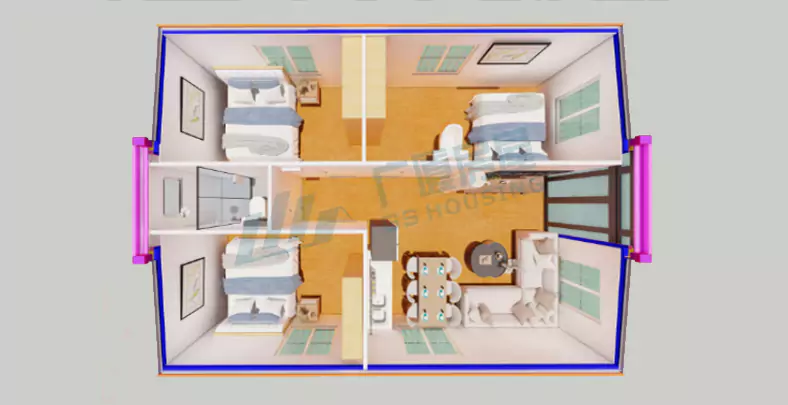

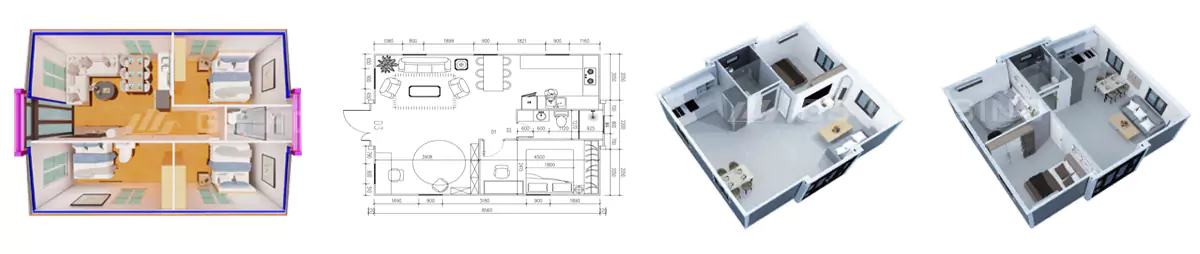

                                                                                                    Layout

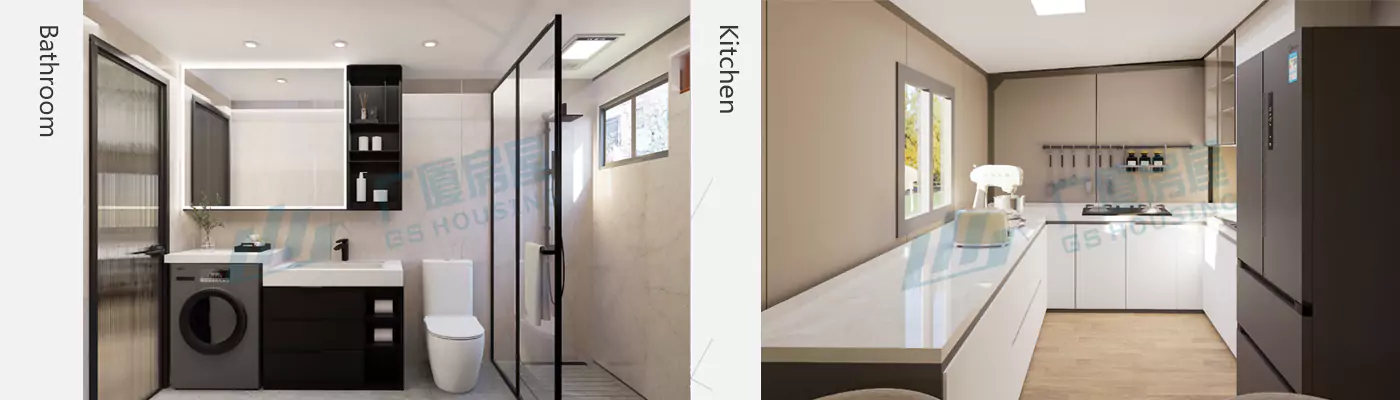

                                                                                                  Interior

Specifications



NO. NAME  SPECIFICATION
1

Main frame
(fully galvanized)
Top side beam 80*100*3.0mm Square tube
Top  beam 140*140*2.5mm Square tube
Bottom  side beam 140*100*2.5mm Square tube
Bottom   beam 140*80*3.0mm Square tube
6mm Galvanized hanging head Galvanized hanging head 210*150*160(mm)
Steel column 210*150*2.5mm Square tube
2 Side frame
(fully galvanized)
Top frame 40*80*1.5mm P shaped tube
40*80*1.5mm  shaped tube
Bottom farm 60*80*2.0mm  shaped tube
Bottom hinge 130 mm Galvanized hinge
3 Wallboard Side walls\ front and rear\Inner partition board 1150 Type – 50mm thick double-sided 0.35mm EPS color steel sandwich panel
4 Ground  Center floor 18mm thick cement fiberboard + 1.6mm PVC flooring
Floor on both sides 18mm thick bamboo plywood + 1.6mm PVC flooring
5 Door and Windows Plastic steel sliding window 800*900mm 4mm+9A+4mm Double glazing
Steel single door  1360*2035mm

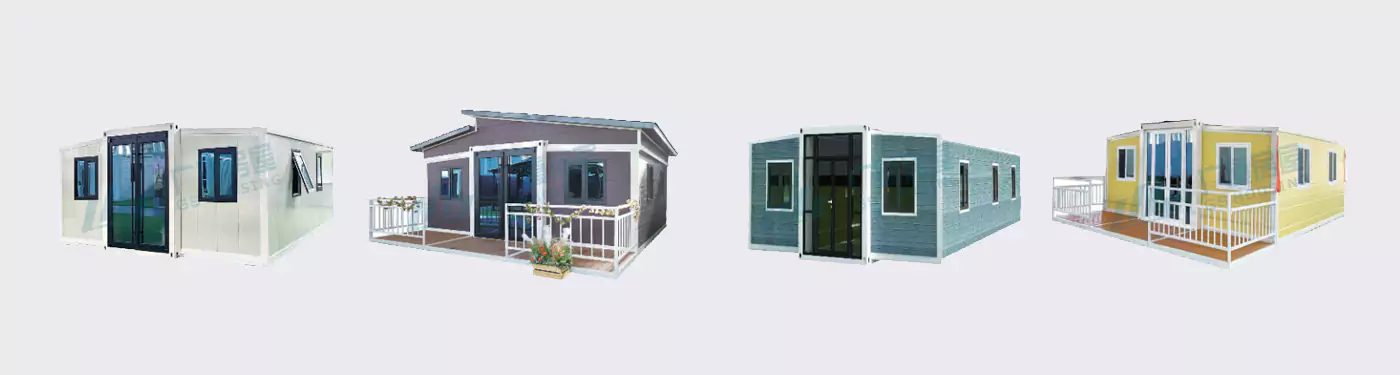

Available in various colors and styles, customizable! Can be designed as a one-bedroom with two living rooms or a two-bedroom with two living rooms
