With the ongoing development of the global housing market, container houses, with their multiple advantages, have gradually become a popular alternative housing solution in some developed countries.
1. Cost-Effective
● Low Cost: Compared to traditional housing, container housing offers significantly lower construction and maintenance costs.
● Recycling and Reuse: Utilizing second-hand containers further reduces construction costs while promoting environmental sustainability.
2. Quick Construction
● Prefabricated Structures: Containers are prefabricated, requiring only basic modifications and installation for use. They are particularly suitable for temporary or emergency housing needs.
● Efficient Production and Installation: The components of container housing are produced in factory assembly lines, ensuring a short construction period. GS Housing provides easy-to-install container solutions along with detailed installation instructions, drawings, and videos. For specific projects, engineers can be dispatched to the site for installation guidance.
3. High Flexibility
● Mobility: Container structures can be easily relocated, making them ideal for people who need frequent location changes.
● Modular Design: Containers can be freely combined or stacked based on specific needs, creating diverse and adaptable spaces.
4. Environmentally Sustainable
● Reduced Construction Waste: Compared to traditional construction methods, container housing reduces construction waste by approximately 70% and saves around 50% in energy consumption.
● Resource Reuse: Containers can be reused multiple times without damage, providing a fast and cost-effective solution.
5. Strong Adaptability
● Adaptable to Various Environments: Container housing is well-suited for urban, rural, or remote areas.
● Specialized Applications: Frequently used as temporary shelters in response to natural disasters or emergencies, such as earthquake relief housing.
6. Long Service Life
● Durable and Reliable Structure: Container housing offers earthquake resistance up to magnitude 8 and wind resistance up to level 12. With a service life exceeding 20 years, it also features earthquake resistance, compression resistance, insulation, soundproofing, fire resistance, water resistance, and wind resistance.
Specifications
| NO. |
NAME |
SPECIFICATION |
| 1 |
Main beam for the top frame |
Material: Q355B,t=3.0mm ，Galvanized cold roll steel,Galvanizing amount 275g/㎡ |
| 2 |
Main beam for the bottom frame |
Material: Q355B,t=3.5mm ，Galvanized cold roll steel,Galvanizing amount 275g/㎡ |
| 3 |
Column |
Material: Q355B,t=4.0mm ，Galvanized cold roll steel,Galvanizing amount 275g/㎡ |
| 4 |
Secondary beam for the top frame |
Material: Q355B,t=1.5mm ，Galvanized cold roll steel,Galvanizing amount 275g/㎡ |
| 5 |
Secondary beam for the bottom frame |
Material: Q355B,t=2.0mm ，Galvanized cold roll steel,Galvanizing amount 275g/㎡ |
| 6 |
Insulation material for the top and bottom frame |
100mm thick rock wool felt with aluminum foil on one side, bulk density ≥60kg/m³, combustion performance is Class A non-combustible; |
| 7 |
External wall panels |
50mm thick color steel sandwich panel, with a 0.5mm corrugated galvanized color steel outer layer, a 0.5mm aluminum-zinc color steel inner layer, and rock wool density of 100kg/m³. |
| 8 |
Inner wall panel |
70mm thick color steel sandwich panel, with a 0.5mm corrugated galvanized color steel outer layer, a 0.5mm aluminum-zinc color steel inner layer, and rock wool density of 80kg/m³. |
| 9 |
Gypsum board |
ordinary gypsum board 、 moisture-proof gypsum board、 fireproof gypsum board |
| 10 |
Sloping roof |
0.5mm thick V-840 white-gray color steel tile, 2C KZ system, with a zinc coating of 275g/㎡; cornices and columns are made of 0.8mm color steel plate. |
| 11 |
Door |
Black, fireproof for 60 minutes, master key |
| 12 |
Window |
The glass is made of transparent low-emissivity 8lov-e+16A+6+0.76pvd+ coated low-transmittance tempered laminated insulating glass |

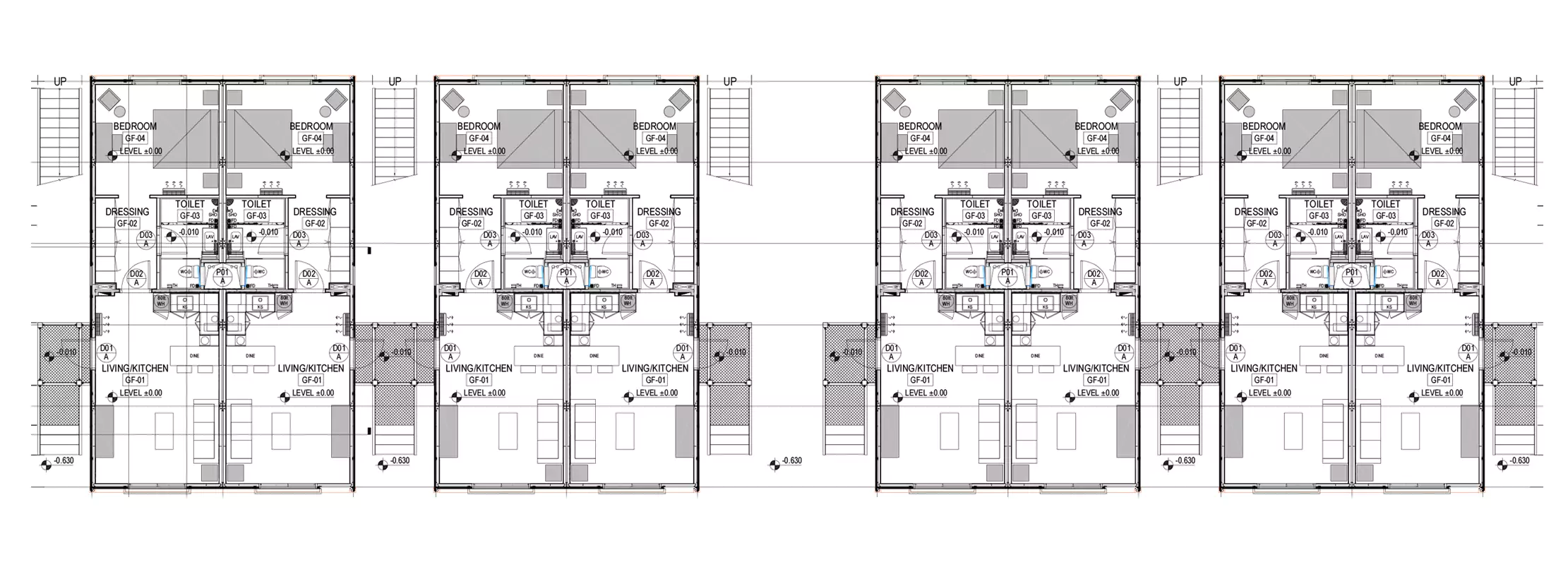

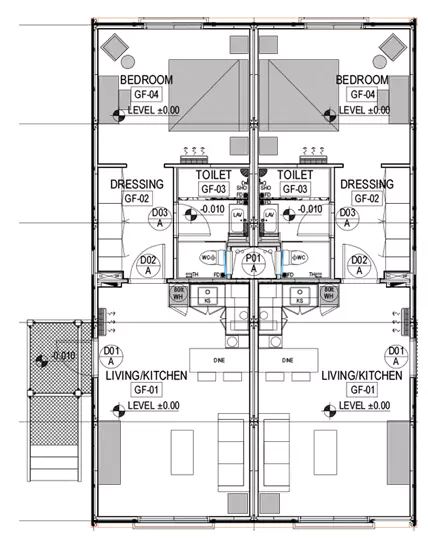

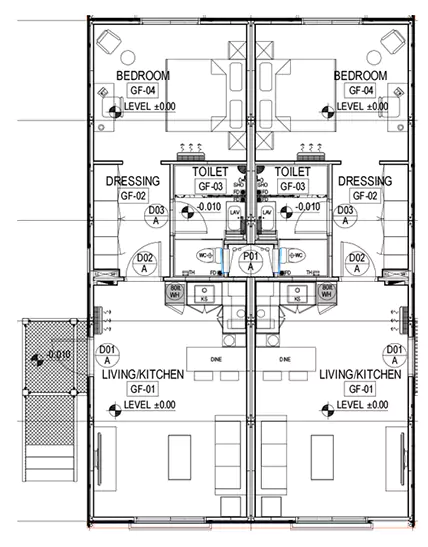

Design Drawings
For more information, you can contact us.
| Authorative Certification |
| After-sales Service |
| 1 |
Do you provide on-site installation service?
We provide very detailed installation instruction drawings and videos for every project.For large projects, we will have both installation workers and supervisors on site.The fee for the on-site service should be negotiated with clients. |
| 2 |
What’s your delivery time?
Normally, delivery time is 7-10 days after deposit received. For large order, the delivery time should be negotiated. |
| 3 |
How to control the quality of your product?
1. quality of the design: think about possible problems in advance and provide a high-quality design solution.
2. quality of the raw material: choose the qualified raw material
3. quality of the production: precise manufacturing technique, experienced workers, strict qualit inspection. |
| 4 |
How to deal with quality problems?
Warranty is 1 years. Within the warranty period, GS Housing will responsible for all quality problems caused by our production. |
| 5 |
If there is a clear service life of your products? If have,how long?
Under conventional climate and environment, the service life of container house steel frame is 20 years |
| 6 |
What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall,or use good insulation material, improve anti-pressure ability of the structure. High corrosion region: use corrosion resistant material, or paint anti-corrosive coating. |
