Maple Grove Villa
- Length: 6.6m
- Width: 3.6m
- Height: 3.3m
- Area:：23.76㎡
- Type: One Bedroom and One Living Room
The main framework of the product is constructed with steel, featuring a sturdy structure, compact footprint, and multiple functional areas including accommodation, guest reception, and scenic viewing.
| ● Functional Spaces: Bedroom, Living Room, Bathroom, Terrace | |
| ● Structural Ratings: Wind Resistance > Typhoon Scale 12, Seismic Resistance > Magnitude 8 |
Specifications

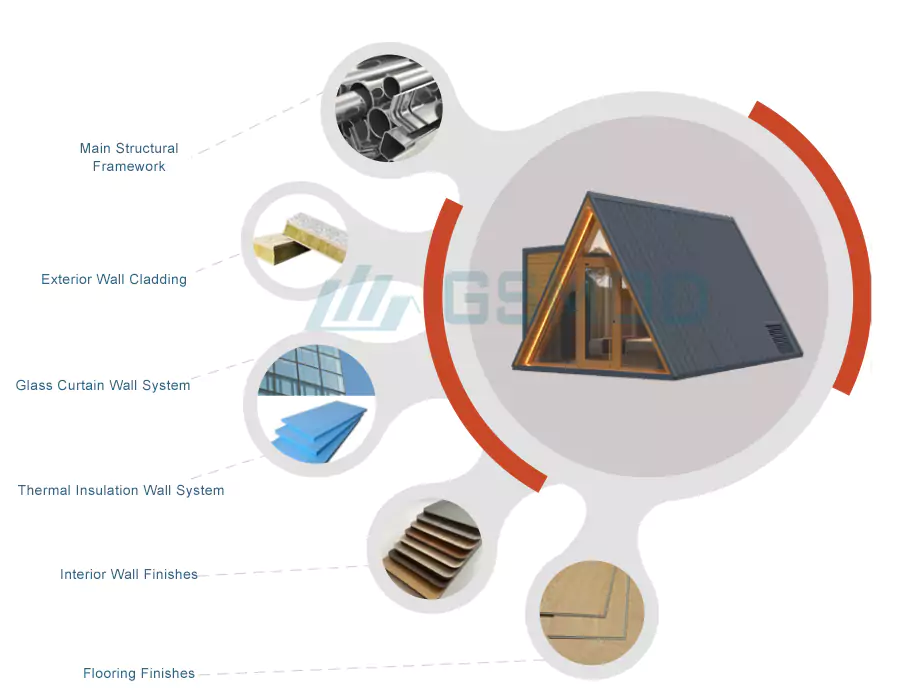

| Structural Components | Component Name | Part Number (PN) | Structural Components | Component Name | Part Number (PN) |
| Primary Envelope Structure | Main Structural Frame | Galvanized Steel Frame | Indoor Eco-friendly Fine Decoration | Ceiling |
Carbon Microcrystalline Fiberboard + Keel Premium Finishing |
|
Frame Surface Treatment |
Fluorocarbon Paint (White/Dark Brown) | Wall | Carbon Microcrystalline Fiberboard + Keel Premium Finishing | ||
| Enclosure | Aluzinc self-clamping steel tile + 16mm high-density polyurethane foam insulation Metal embossed decorative panel (for partial walls) | Bedroom Headboard Feature Wall |
SPC Stone-Plastic Composite Nanotechnology Waterproof Flooring |
||
| Building Insulation System | 50mm thick XPS (extruded polystyrene) board / polyurethane insulation layer | Interior Flooring | Stranded Copper Core Cable | ||
| Integrated Fenestration Assembly | 5mm + 9A + 5mm Tempered Insulated Glass | Electrical & Plumbing Systems | Electrical Circuit | Stranded Copper Core Cable | |
| Windows | 5mm + 9A + 5mm Tempered Insulated Glass | Smoke Detector | Battery-powered (Non-networked) | ||
| Structural Fasteners | Switch & Socket Outlets | GB-compliant Switches & Sockets | |||
| Lighting Fixtures | Energy-saving LED Lights & Spotlights |
